At its core, a LangChain RAG pipeline is a system that gives your LLM a brain upgrade by connecting it to external knowledge. This process, Retrieval-Augmented Generation, works by finding relevant snippets from your documents and feeding them to the model as context. The result? Much more accurate, factual, and timely answers.

Building Your Production-Ready RAG Pipeline Blueprint

Before you write a single line of code, you need a solid blueprint. I’ve seen countless projects get stuck because they treated their RAG system like a simple, single step. The key is to think in modular components, where every stage is laser-focused on one goal: improving retrieval accuracy.

A strong blueprint isn't just about what components to use, but why you're using them. This mindset makes everything from debugging and evaluation to future upgrades so much easier. A truly effective LangChain RAG pipeline isn't just built; it's engineered with intent right from the start.

The Core Stages of RAG

The journey from a user's question to a context-aware answer isn't a straight line. It’s a series of distinct stages, and each one is a chance to either boost or tank your final output quality. A good grasp of broader AI orchestration principles can really help here, making sure all the moving parts work together seamlessly.

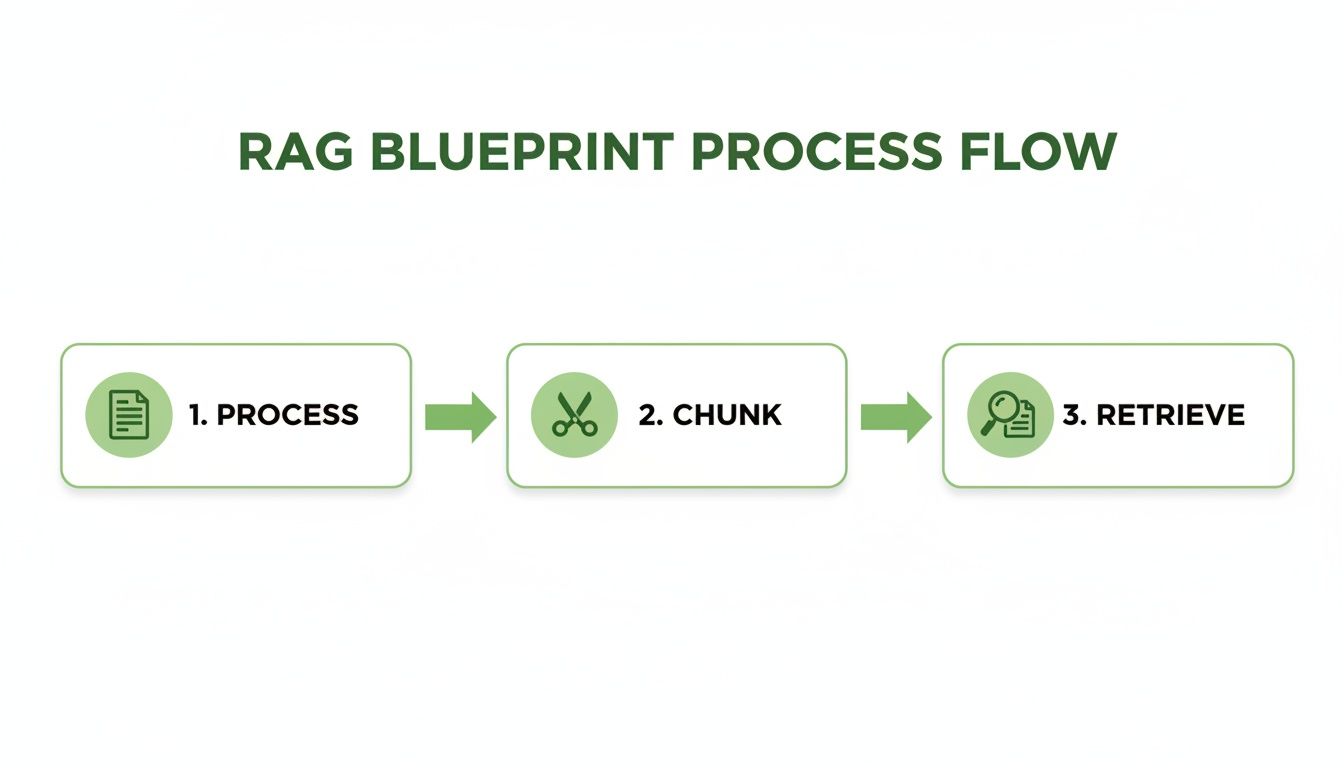

This flow chart breaks down the fundamental steps you need to plan for.

As you can see, the quality of what you retrieve is a direct result of how well you process and chunk your documents beforehand.

This modular approach has become the industry standard for a good reason. RAG systems have moved past the experimental phase and are now a critical part of enterprise tech. Recent data shows that 57.3% of organizations have agent-based systems live in production, with mid-sized companies leading the charge at a 63% adoption rate. These numbers prove we've shifted from building toy projects to engineering scalable, business-critical pipelines.

Key Components to Consider

Mapping out your pipeline means making some deliberate choices about its core building blocks. Here are the essentials you need to think about:

• Intelligent Document Processing: How will you extract clean, structured text from messy real-world files? An actionable plan must account for PDFs with tables, images, and complex layouts, not just plain text.
• Sophisticated Chunking: If you're still using fixed-size splits, your retrieval quality is suffering. Your chunking strategy directly impacts the context your retriever finds. For a deeper dive, check out our guide on the essential elements of a modern RAG pipeline.
• Advanced Retrieval Methods: Standard vector search is only the beginning. Actionable improvement comes from implementing techniques like hybrid search, re-ranking, or multi-query retrievers from the start. This prepares your system to handle the complex questions real users will ask.

The single biggest mistake developers make is underestimating the impact of pre-processing. A perfectly tuned retriever and LLM cannot save a pipeline that is fed poorly chunked, noisy, or irrelevant context. Getting the first two steps—processing and chunking—right solves 80% of retrieval problems.

Mastering Document Chunking for Superior Retrieval

The quality of your LangChain RAG pipeline gets decided long before a user ever asks a question. It all comes down to how you prepare your source documents. Just splitting text into fixed-size pieces is a common starting point, but it's also a major reason RAG systems fail, often serving up fragmented context and irrelevant answers.

If you want to build a truly great retrieval system, you need to think smarter about your chunking strategies. The whole point is to create chunks that are not just small enough for a context window, but are also semantically complete units of information. This one step has a massive impact on the quality of your LLM's final response.

Moving Beyond Fixed-Size Chunking

Fixed-size chunking is the brute-force method. It slices through documents at arbitrary points, often cutting sentences in half or separating a key concept from its explanation. This creates a noisy, disjointed knowledge base that just confuses the retriever.

A much better approach is to use methods that respect the natural structure of your documents. This means thinking about how information is already organized—by paragraphs, sections, or even by its underlying meaning.

• Paragraph-Based Splitting: This is a huge step up. It keeps related sentences together, ensuring each chunk represents a coherent thought. Since most documents are already structured this way, it’s a logical and effective first move.
• Heading-Aware Chunking: This method leverages the document's structure (like H1, H2, and H3 titles) to define chunk boundaries. You can then enrich chunks with metadata linking them to their parent sections, which is invaluable for providing broader context during retrieval.
• Semantic Chunking: This is the most advanced approach. It groups related sentences based on their meaning, using embedding models to find conceptual breaks in the text. This is incredibly powerful for unstructured documents that don't have clear headings or consistent paragraph breaks.

The core idea is simple: a chunk should be able to answer a question on its own. If a chunk is just a fragment of an idea, it’s not a useful piece of knowledge for your RAG pipeline.

Choosing Your Chunking Strategy

Selecting the right strategy depends entirely on your content. A legal document needs a different approach than a collection of Slack messages. Here's a quick breakdown to help you decide.

Strategy	Best For	Pros	Cons
Fixed-Size	Structured data, code, or homogenous text where semantic breaks are less critical.	Simple, fast, and predictable chunk sizes.	Often cuts sentences or ideas in half, leading to fragmented context.
Paragraph	Well-formatted articles, reports, and documentation with clear paragraph breaks.	Respects natural thought boundaries and is easy to implement.	Paragraphs can vary wildly in length, from one sentence to many pages.
Heading-Aware	Technical manuals, textbooks, and any document with a strong hierarchical structure (chapters, sections).	Preserves the document's structure and allows for contextual metadata.	Can result in chunks that are too large if sections are very long.
Semantic	Unstructured or complex documents where topics shift without clear formatting cues.	Creates the most contextually rich and coherent chunks based on meaning.	Computationally more expensive and slower than other methods.

Ultimately, the best choice is the one that produces the most coherent, self-contained chunks from your specific documents. Don't be afraid to experiment.

Visualizing and Refining Your Chunks

The difference between these strategies is one thing in theory, but seeing the results is what really matters. Visual inspection is a critical, often-skipped step that helps you catch bad splits and confirm your strategy is working as intended. Tools like ChunkForge are built for this, letting you see exactly where your chunk boundaries fall on the original document.

This visual feedback loop is crucial for fine-tuning. For a more detailed breakdown, our guide on advanced chunking strategies for RAG offers a deep dive.

Here’s what that looks like in a tool designed for visual chunking.

This kind of interface shows the source document next to the generated chunks, mapping each one back to its origin. You can immediately spot where a chunk might be too short, too long, or missing critical context from a nearby paragraph.

The Power of Rich Metadata

Intelligent chunking isn't just about the text; it's also about the metadata you attach to each piece. This metadata acts as a set of powerful filters for your retriever, enabling much more precise and context-aware searches.

For every single chunk you create, you should aim to capture:

1. Source Information: The original filename and page number. This is non-negotiable for traceability and allows your application to cite its sources.
2. Structural Context: The section title or heading the chunk belongs to. This helps the retriever understand where the chunk fits into the bigger picture.
3. Generated Summaries: A concise summary of the chunk's content. A re-ranker can use this to quickly assess relevance without processing the full text.
4. Keywords and Tags: Extracted keywords or custom tags that can be used for filtered searches, letting users narrow results to specific topics.

By enriching your chunks with this data, you transform a flat collection of documents into a structured, searchable knowledge base. This careful prep work during the chunking phase is what separates a shaky proof-of-concept from a production-ready LangChain RAG pipeline that delivers accurate and relevant results every time.

Choosing Your Vector Store and Advanced Retrievers

Okay, you’ve intelligently chunked your documents and enriched them with metadata. The next make-or-break step in your LangChain RAG pipeline is turning those text chunks into numerical vectors—embeddings—and storing them somewhere for lightning-fast lookup. This is where you pick your embedding model and your vector store.

Get this part right, and your RAG system will be snappy and accurate. Get it wrong, and even the best chunking strategy in the world won't save you from slow, irrelevant results.

Picking the Right Embedding Model

An embedding model is the engine that converts your text into vectors, which are just lists of numbers that capture semantic meaning. Your choice here directly impacts performance, cost, and complexity.

• OpenAI Ada (text-embedding-ada-002): This is the go-to for a reason. It's a high-performing model with a fantastic grasp of nuance. It's a solid default for most projects, but remember you'll be paying API costs for every chunk you embed.
• Sentence Transformers (e.g., all-MiniLM-L6-v2): These are my favorite for local development. They're open-source, fast, and completely free to run once you've got them set up. This gives you total control without sending data to a third party.
• Cohere Models: Cohere offers some seriously powerful embedding models that often top the leaderboards, especially for niche domains or languages. They're a really strong commercial alternative to OpenAI.

So, what’s the "best" model? It depends. For a quick proof-of-concept, a local Sentence Transformer is perfect. For a production system where accuracy is everything, a commercial model from OpenAI or Cohere is probably worth the investment.

Choosing Your Vector Store

Your vector store (or vector database) is the home for all your embedded chunks. Its entire job is to perform incredibly fast similarity searches to find the vectors that are most relevant to a user's query. The right one for you will depend on your scale, budget, and how much you like managing infrastructure.

A Quick Comparison of Vector Stores

Category	Option	Best For	Key Features
Local / In-Memory	FAISS	Rapid prototyping, small projects, and local development.	Blazing fast for in-memory work. No network lag. Simple setup.
Cloud / Managed	Pinecone	Production apps needing high availability and minimal maintenance.	Fully managed, advanced filtering, real-time indexing.
Cloud / Self-Hosted	Weaviate	Teams wanting a balance of control and features.	Supports hybrid search, GraphQL API, modular design.
Cloud / Self-Hosted	Chroma	Open-source projects that value developer experience and ease.	Simple API, runs in-memory or client-server. Great for demos.

When you're just starting, a local store like FAISS or Chroma is a no-brainer. You can build and test your entire pipeline right on your laptop. But when it's time to go to production, a managed cloud service like Pinecone or Weaviate is almost always the right call for reliability and scale.

For a more detailed breakdown, check out our guide comparing different LangChain vector store integrations.

I've seen teams get stuck for weeks trying to pick the perfect vector database from day one. Don't fall into that trap. Start simple with FAISS. The beauty of LangChain is its modularity—you can swap out the vector store with just a few lines of code when you’re ready to scale.

Implementing Advanced Retrievers for Better Context

Standard vector search is a great starting point, but it isn't a silver bullet. User questions are messy. They can be vague, complex, or hint at ideas that span multiple documents. This is where you level up with LangChain's advanced retrievers.

Honestly, moving beyond the default as_retriever() method is probably the single most impactful change you can make to improve your RAG system's quality.

The Multi-Query Retriever

We've all seen users ask vague questions. A standard retriever might completely miss the mark because the query wording doesn't quite match the text in your documents. The Multi-Query Retriever is a clever solution. It uses an LLM to rewrite the user's question from several different angles.

It then runs a search for each of those new queries, gathers all the results, and gets rid of any duplicates. This casts a much wider net, dramatically improving your chances of finding the right information. It’s a game-changer for complex questions with multiple sub-points.

The Parent Document Retriever

We talked about using small, focused chunks for precise vector searches. But what happens when the LLM needs the bigger picture? That's the classic RAG dilemma, and the Parent Document Retriever is the answer.

Here’s how it works: you index the small chunks but also store a reference to the larger "parent" document they came from. The retriever first finds the most relevant small chunks. Then, it pulls the full parent documents for those chunks and feeds that expanded context to the LLM. You get the best of both worlds: the precision of small chunks for search and the rich context of larger documents for generation.

Tuning Your Retrieval Parameters

Finally, even with a great retriever, you have to tune the parameters. The most important one is k, which sets the number of documents you retrieve.

• Low k (like 2-3): Pulls back only the top few results. This keeps the context window lean, reducing noise and leading to faster, cheaper LLM calls. The risk? You might miss some crucial context.
• High k (like 5-10): Gives the LLM a lot more material to work with. This is great for complicated questions but increases the chance of confusing the model with irrelevant info (noise) and running into context length limits.

There's no magic number for k. The right value depends entirely on your data, your chunking strategy, and the kinds of questions your users ask. My advice is to start low, maybe k=4, and rigorously evaluate the results. If answers are consistently missing key details, slowly bump k up and see how it affects accuracy and cost. This iterative tuning is a core part of building a truly high-performing LangChain RAG pipeline.

5. Weaving Your Core RAG Chain and Prompt

Alright, this is where the magic really happens. You’ve got your finely-tuned document chunks and a retriever that knows how to find them. Now it's time to build the core of your LangChain RAG pipeline: the chain that connects your retriever to the LLM, all orchestrated by a carefully written prompt. This is the step that turns a pile of retrieved text into a smart, coherent answer.

The cleanest way to do this is with the LangChain Expression Language (LCEL). LCEL gives you a slick, pipe-based syntax (|) that lets you chain operations together. It creates a flow that's not just functional, but also incredibly easy to read and debug, tracing the path from the user's question to the final answer.

Crafting a High-Fidelity Prompt Template

Think of your prompt template as the LLM’s instruction manual. It's not just about passing along the question. It’s about structuring the input to force the model to behave exactly as you want. A lazy or vague prompt is a direct invitation for hallucinations and answers that completely ignore the context you just worked so hard to retrieve.

A solid RAG prompt has to nail three things:

• Clearly Delineate Context: The model needs to know, without a doubt, which part of the prompt is the retrieved information and which part is the user's question.
• Instruct on How to Use Context: You have to explicitly tell the model to base its answer only on the documents you provide. This is non-negotiable.
• Provide a Fallback: Tell the model what to do if the answer isn't in the context. A simple "If the answer is not in the context, say you don't know" is a powerful guardrail.

Here’s a battle-tested template that gets the job done:

template = """ You are an assistant for question-answering tasks. Use the following pieces of retrieved context to answer the question. If you don't know the answer, just say that you don't know. Use three sentences maximum and keep the answer concise.

Question: {question} Context: {context} Answer: """

This structure is simple but incredibly effective. It erects clear boundaries for the LLM, dramatically cutting down the odds of it going off-script and inventing facts.

Building the Chain with LCEL

With your prompt ready, you can assemble the full chain. The goal is a seamless flow: the user's question goes to the retriever, the retrieved context is formatted into your prompt, and the whole package is sent to the LLM for the final answer.

Two key helpers here are RunnablePassthrough and StrOutputParser.

• RunnablePassthrough: This is your secret weapon for keeping the original question handy. It lets you pass the user's input through the chain so it can be used later in the prompt, even after the retriever has already used it.
• StrOutputParser: LLMs return complex objects. This parser simply plucks out the final text and gives you a clean string, which is what your application actually needs.

Here’s what the complete chain looks like in code:

from langchain_core.prompts import ChatPromptTemplate from langchain_core.runnables import RunnablePassthrough from langchain_core.output_parsers import StrOutputParser from langchain_openai import ChatOpenAI

Let's assume 'retriever' is already configured and ready to go

llm = ChatOpenAI(model_name="gpt-3.5-turbo", temperature=0) prompt = ChatPromptTemplate.from_template(template)

rag_chain = ( {"context": retriever, "question": RunnablePassthrough()} | prompt | llm | StrOutputParser() )

This chain is just plain elegant. It clearly defines that the context is supplied by the retriever while the question is passed through untouched. Both are then fed into the prompt, which goes to the llm, and the final output is parsed into a simple string.

A well-constructed chain isn't just about getting it to work; it's about making it maintainable. By using LCEL and breaking the logic into discrete, piped steps, you can easily inspect the output of any component. This makes troubleshooting a thousand times easier than wrestling with a giant, monolithic block of code.

Dodging the "Lost in the Middle" Problem

Here’s a subtle but critical trap many RAG developers fall into: the "lost in the middle" phenomenon. Research has shown that LLMs tend to pay more attention to information at the very beginning and very end of a long context window. If your single most relevant document chunk gets buried in the middle, the model might just ignore it.

Fortunately, there’s a direct fix for this: re-ranking.

The strategy is simple. First, you retrieve a larger-than-needed set of documents (say, k=10). Then, you use a lightweight, specialized re-ranking model to score and re-order them based on their relevance to the specific query. Finally, you pass only the top few (e.g., top 3-5) to your main LLM.

This ensures the most crucial context is placed right where the model will see it—usually at the very start of the prompt. Services like Cohere offer excellent re-ranking endpoints. While it adds a tiny bit of latency, integrating a re-ranker is a common optimization for production-grade RAG pipelines because it provides a significant and reliable boost in answer quality.

Evaluating and Optimizing Your Pipeline for Production

So you’ve built a prototype of your LangChain RAG pipeline. That's a huge step, but the real work starts when you prep it for the chaos of a production environment. A pipeline that runs flawlessly on your local machine can easily stumble under real-world pressure, spitting out slow, expensive, or just plain wrong answers.

This is where the less glamorous but absolutely critical work of evaluation and optimization comes in.

Making the leap from a proof-of-concept to a production-ready system means you have to stop asking "does it work?" and start asking "how well does it work?" It's a shift that involves measuring performance with real metrics, hunting down bottlenecks, and architecting for scale. This is how a cool script becomes a reliable application.

Establishing Your Evaluation Framework

You can't fix what you don't measure. Before you start tweaking code, you need a solid way to benchmark performance. This usually starts with creating a small, high-quality evaluation dataset—a curated set of question-and-answer pairs that mimic what you expect from real users.

With this dataset in hand, you can start measuring RAG-specific metrics that go way beyond simple accuracy. Frameworks like RAGAs or TruLens are built for exactly this, helping you quantify performance with metrics like:

• Context Precision: Are the retrieved chunks actually relevant to the question? This measures the signal-to-noise ratio in your context.
• Context Recall: Did your retriever find all the information needed to answer the question?
• Faithfulness: Is the LLM's answer actually based on the provided context? This is your key defense against hallucinations.
• Answer Relevancy: Does the final answer actually address the user's original query, or did it go off on a tangent?

These metrics act like a diagnostic report for your pipeline. For example, low context recall might point to a bad chunking strategy, while low faithfulness probably means your prompt needs to be tightened up.

Optimizing for Cost and Latency

Once you have your benchmarks, it's time to optimize. In production, cost and latency are the two monsters that can kill your project. Every call to a powerful LLM costs real money and adds precious seconds to your response time, directly impacting both your budget and the user experience.

One of the most powerful tools in your optimization arsenal is semantic caching. Instead of re-computing everything for every query, you store the results of previous ones. When a new question comes in, the system first checks if a semantically similar question has already been answered. If it finds a match, it just returns the cached response.

The efficiency gains here are massive. A good semantic cache can slash production costs by up to 68.8%. Even better, cache hits serve responses in under 100 milliseconds—making them up to 65 times faster than a full RAG cycle.

The goal of optimization isn't just to make your pipeline faster or cheaper—it's to make it smarter. Techniques like semantic caching create a system that learns from its usage, becoming more efficient with every query it handles.

Architecting for Production Scale

That single Python script running your entire RAG pipeline? It’s great for development, but it's a disaster waiting to happen in production. To handle real-world traffic and stay maintainable, you need to break your pipeline into two distinct services: an indexing pipeline and a querying pipeline.

• Indexing Pipeline: This is a background job that handles loading, chunking, and embedding your documents. It runs whenever your source data changes, keeping your vector store fresh. You design this for throughput, not speed, and it can run asynchronously.
• Querying Pipeline: This is your real-time, user-facing service. It takes a question, hits the vector store, builds the prompt, and gets an answer from the LLM. This pipeline must be optimized for low latency.

This separation of concerns is a non-negotiable architectural shift. It lets you update your knowledge base without taking your app offline and allows you to scale each component independently. And for RAG pipelines specifically, solid LLM monitoring is crucial to track performance, catch model drift, and ensure your answers stay high-quality. By adopting this two-pipeline architecture, you build a system that’s not only powerful but also resilient and ready to scale.

Common Questions When Building a LangChain RAG Pipeline

As you move from a basic proof-of-concept to a production-ready RAG pipeline, you're bound to hit some tricky edge cases. Let's tackle some of the most common questions that pop up, with practical advice for getting your system to perform reliably.

How Should I Handle Documents with Tables and Images?

When your source documents are more than just a wall of text, a simple text-based approach just won't cut it. You'll get much better results by treating different content types, like tables and images, as first-class citizens.

Don't try to cram everything into a single text extractor. Instead, build a small, specialized processing pipeline for these complex documents:

• Use a dedicated parser to pull out tables and convert them into a structured format like CSV or even a clean markdown table.
• Run any images through an image-to-text model (like a vision transformer) to generate rich, descriptive captions.

The real magic happens next: you create separate embeddings for the text, the structured table data, and the image descriptions. By enriching these embeddings with metadata that links them all back to the original document, you can power up a multi-vector retriever. This allows your RAG system to intelligently search across every data type to find the most relevant context, whether it’s buried in a paragraph, a row in a table, or an image caption.

What Is the Best Way to Update My Vector Database?

Keeping your knowledge base fresh is non-negotiable for a production system. Nobody wants a chatbot spitting out outdated information. The key is to avoid re-indexing your entire dataset every time a document changes. That's slow, expensive, and completely unnecessary.

The solution is an incremental indexing pipeline.

Start by assigning a unique ID to each source document and all the chunks generated from it. When a document gets updated or deleted, you can use these IDs to target and remove only the old, stale chunks from your vector store. Once they're gone, you simply index the new version. This, of course, relies on using a vector database that supports efficient deletion by ID.

For a truly hands-off setup, you can automate this whole process. A CI/CD pipeline or a simple webhook that triggers an indexing job whenever a source document is modified is a great way to ensure your RAG's knowledge is always in sync.

Your RAG system is only as reliable as its data. An automated, incremental update strategy prevents stale information from degrading user trust and keeps your pipeline's knowledge base synchronized with your source of truth.

How Can I Improve My RAG Pipeline's Speed?

A slow, laggy response can kill the user experience. When a RAG pipeline feels sluggish, the bottleneck is almost always in one of two places: the LLM call or the retrieval step itself.

To speed up retrieval, first make sure your vector database is properly indexed (using an algorithm like HNSW is standard practice) and that you aren't pulling back too many chunks. Retrieving dozens of chunks is usually counterproductive. Start with a small k value, somewhere between 3 and 5, and tune from there.

For the LLM, the obvious fix is to use a smaller, faster model. You can also implement streaming to improve the perceived performance, showing the user that the system is working on their answer right away.

But the single most impactful optimization you can make is implementing semantic caching. If a user asks a question that's semantically similar to one that's been asked before, you can skip the expensive retrieval and LLM call entirely. Instead, you just return the cached answer in milliseconds. For frequently asked questions, this is a massive performance win.

---
