Mastering PDF to Markdown for Better RAG Retrieval

Converting a PDF into clean Markdown is the single most critical step in preparing documents for Retrieval-Augmented Generation (RAG). The quality of this initial conversion directly dictates the retrieval accuracy of your entire system. A well-structured Markdown file is vastly superior to raw text because it preserves the document's original hierarchy, context, and semantic boundaries—the very elements essential for effective retrieval.

Why High-Fidelity Markdown Is Key to RAG Performance

Before diving into tools and techniques, it's crucial to understand why this matters so much for retrieval. The goal isn't just to extract text; it's to maintain the document's semantic structure. A lazy PDF conversion creates a chaotic wall of text, stripping away vital structural information like headings, lists, and tables that are critical for contextual understanding.

This unstructured mess is a direct path to poor RAG performance. When a retrieval system ingests messy text, it cannot create meaningful "chunks" of information. These nonsensical chunks produce weak, ambiguous vector embeddings, making it nearly impossible for the system to retrieve relevant context. The Large Language Model (LLM) receives fragmented, out-of-context data, which leads directly to irrelevant or completely fabricated answers.

The Impact of Structure on Retrieval

Consider a complex financial report. A raw text dump might merge a table caption with a footnote and a paragraph from an unrelated section. When the RAG system chunks this jumbled text, the resulting vector embedding represents a meaningless combination of information, rendering it useless for retrieval.

Now, imagine that same report after a high-fidelity Markdown conversion. You would have:

• Clear headings (## Q4 Earnings Summary) that define semantic boundaries.
• Properly formatted tables that preserve the relationship between rows and columns.
• Bulleted lists that isolate key takeaways for precise retrieval.

This structural integrity is the foundation of high-quality retrieval. It ensures that when your system creates chunks, each piece retains its original context, leading to far more precise and meaningful vector embeddings.

A Real-World RAG Scenario

Let’s say you ask your RAG system, "What was the net income for Q4 2023?"

With a messy text dump, the system might retrieve a chunk containing the keywords "net income," "Q4," and "2023," but mashed together with unrelated text. The LLM gets confused by the lack of context and is likely to hallucinate an answer.

With clean Markdown, the vector search can pinpoint the exact table or section labeled "Q4 2023 Financials." The retrieved chunk is a clean, self-contained unit of information, giving the LLM the precise context it needs to provide a factually correct answer.

To truly grasp why this initial conversion is so foundational, it helps to understand what parsed data is and its role in the RAG pipeline.

Choosing Your PDF To Markdown Conversion Toolkit

Selecting the right tool to convert PDF to Markdown is a foundational decision that directly impacts your RAG system's retrieval quality. The reality is that PDFs vary wildly, from simple text-based documents to complex scanned papers with tables, images, and multi-column layouts. A one-size-fits-all approach is guaranteed to fail.

For straightforward, digitally-native PDFs, a command-line tool like Pandoc can often suffice. It's fast and does a respectable job of extracting text and basic structures like headings, providing a clean starting point.

However, most real-world RAG projects must handle a messy mix of document types. This is where you need more sophisticated, layout-aware tools.

Navigating Modern Conversion Libraries

Modern libraries are engineered for the complexity that makes simpler tools inadequate. They use advanced layout analysis and Optical Character Recognition (OCR) to intelligently deconstruct a PDF's visual structure and translate it into clean, semantic Markdown that is optimized for retrieval.

This is where you get the real value for a RAG pipeline. Preserving the original structure isn't just a "nice-to-have"—it's absolutely essential for creating meaningful, context-rich chunks that your retrieval model can effectively search.

The open-source community offers powerful options like Marker, MinerU, and MarkitDown, which are ideal for teams building private, air-gapped RAG systems. Among these, Marker stands out for its speed, versatility, and ability to process PDFs, DOCX, and XLSX files into high-quality Markdown or JSON.

Its integrated OCR and support for local models make older, text-only libraries like PyPDF2 feel obsolete for serious RAG applications.

The ultimate goal is to enable hybrid layout-semantic chunking. Your conversion tool must understand both the document's visual flow and its conceptual meaning. This provides the precise, structured input that chunking tools like ChunkForge require to create retrieval-optimized assets.

When To Use Advanced Tools

You should always opt for an advanced, layout-aware converter when your documents involve:

• Complex Tables: Financial reports or scientific papers with dense, multi-page tables.
• Multi-Column Layouts: Newsletters, academic articles, and magazines.
• Scanned Text: Digitized historical documents, invoices, or books where OCR is non-negotiable.
• Embedded Images with Captions: Ensuring the image and its descriptive context remain linked.

For a deeper dive into conversion strategies for different document types, check out this practical guide to PDF to Markdown conversion. Understanding these nuances will help you select the right tool for your specific use case.

To simplify the selection process, here’s a quick comparison of popular tools for RAG pipelines.

PDF Conversion Tool Comparison for RAG Pipelines

Tool	Best For	OCR Capability	Layout Preservation	Speed
Marker	High-performance, mixed-format RAG pipelines	Excellent (via Tesseract)	High	Fast
Pandoc	Simple, text-based documents	No (requires plugins)	Low	Very Fast
MinerU	Academic papers & structured documents	Good	High	Moderate
MarkitDown	Scanned documents needing strong OCR	Excellent	Moderate	Moderate

Ultimately, there's no single "best" pdf to markdown tool—only the one that produces the cleanest, most structurally accurate output from your specific source documents. Investing time upfront to choose the right converter will prevent significant downstream problems with chunking, embedding, and retrieval accuracy.

A great starting point is to build a robust conversion workflow around a powerful Python PDF reader library.

Simple, text-based PDFs are one thing. The real challenge in RAG data preparation comes from the complex, messy documents that are common in enterprise settings.

I’m talking about scanned academic papers, multi-column reports, or technical manuals packed with diagrams and code snippets. For these, you need a robust workflow built around a tool designed for layout analysis and OCR, like Marker.

Marker is an open-source powerhouse that excels where simpler converters fail. It intelligently analyzes a document's layout to preserve headings, lists, tables, and code blocks. This is absolutely critical for creating clean, structured Markdown that maintains the original file's semantic integrity, which directly translates to more accurate chunking and better retrieval performance.

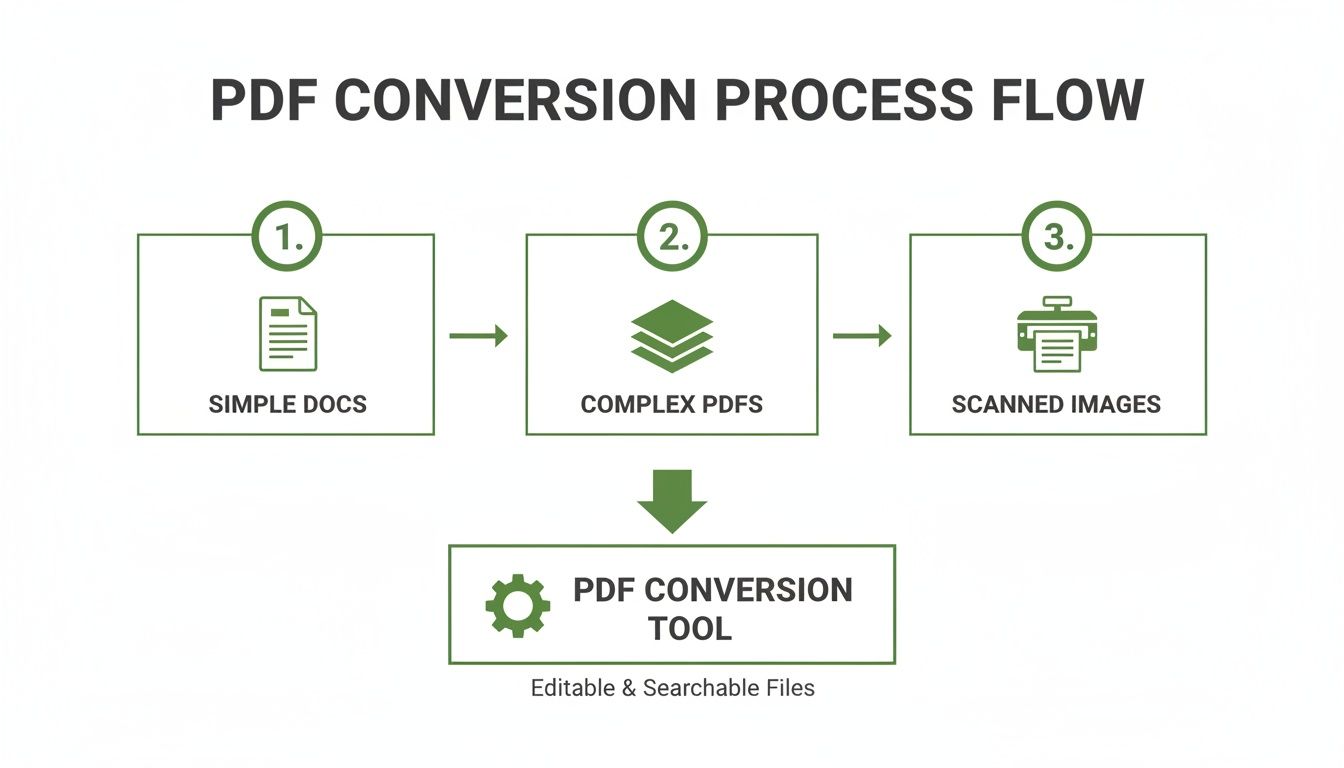

This diagram illustrates the different conversion paths based on document complexity.

The takeaway is clear: as you move from basic text to complex layouts and scanned pages, specialized tools with layout analysis and OCR are essential for achieving high-quality results.

Get Your Environment Ready

Marker is typically used via its command-line interface (CLI), making it perfect for automating the processing of large document batches. The setup is straightforward, involving installing dependencies with pip.

The real power lies in its customizable parameters. You can fine-tune the conversion to fit your exact needs, such as setting the OCR language or adjusting the removal of artifacts like headers and footers. This level of control is what separates a high-quality, retrieval-ready conversion from a jumbled mess of text.

Run the Conversion

Once set up, processing a document is as simple as running a command. A typical command might look like this:

marker convert --pdf "my_scanned_paper.pdf" --output "markdown_output"

This command instructs Marker to convert the PDF and place the resulting Markdown file in the specified output folder. For batch processing, this command can be easily wrapped in a script to automate your data preparation pipeline.

For scanned documents, Marker automatically utilizes its OCR engine. The output quality is remarkably high, often capturing text cleanly even from low-resolution scans.

Marker’s speed is particularly impressive, often outperforming many commercial cloud services. Benchmarks show it can process documents at a projected rate of 25 pages/second on high-end hardware. Because it runs local models, it’s an ideal choice for air-gapped RAG systems, aligning with the self-hosted, data-control philosophy of tools like ChunkForge. You can explore the performance and features of Marker on its GitHub page.

This example output demonstrates its effectiveness.

Notice how Marker accurately preserves complex elements like mathematical equations and code blocks, translating them into clean, RAG-ready Markdown. By keeping this structure intact, the downstream chunking and embedding processes become far more effective, ensuring your RAG system can retrieve precise, contextually relevant information. For a high-performing system, this foundational step is non-negotiable.

Turning Raw Markdown Into RAG-Ready Chunks

Converting your PDF to clean Markdown is a critical first step, but it only gets you to the starting line. Now, the real work begins: transforming that structured document into a collection of intelligent, retrieval-optimized assets for your vector database.

This is where chunking comes in.

Naive strategies, like splitting text every 100 words, are a recipe for failure. This approach rips context apart and creates a mess of nonsensical fragments that poison your retrieval system. What you need is a methodical approach that understands and respects the document's inherent structure. Tools like ChunkForge were built to solve this exact problem, bridging the gap between raw Markdown and a production-ready knowledge base.

How you transform your content upfront is everything, especially when building an AI chatbot from your unique content—like PDFs—without writing a single line of code.

Applying Intelligent Chunking Strategies

Once your Markdown is loaded into a tool like the ChunkForge studio, you can apply various chunking strategies. This is not a one-size-fits-all process; the optimal strategy depends entirely on your content's structure.

• Heading-Based Chunking: This is the best choice for highly structured documents like technical manuals, financial reports, or academic papers. It uses Markdown headings (#, ##, ###) as natural boundaries, ensuring related paragraphs and sections remain together in a single, coherent chunk. This directly improves the relevance of retrieved context.

• Semantic Chunking: For more narrative documents like whitepapers or articles, semantic chunking is highly effective. It groups text by topic, creating thematically consistent chunks that provide focused context for the LLM, even if they span multiple paragraphs.

Choosing the right strategy is a make-or-break decision for retrieval quality. For a deeper analysis, our guide on chunking strategies for RAG explains how to match your content with the most effective splitting technique.

The goal of intelligent chunking is to create self-contained, contextually complete units of information. Each chunk must make sense on its own, providing sufficient context for the RAG system to generate a precise and relevant answer.

Verifying Context and Enriching Chunks

A major risk with automated chunking is creating "bad splits"—awkward breaks that sever a key idea. This is why a visual preview is essential.

Advanced studios like ChunkForge provide a visual overlay that maps each chunk back to its original location in the document. This allows you to instantly verify that context is preserved and that critical information has not been cut off.

Beyond splitting text, the final step is to enrich each chunk with metadata. This is what supercharges your retrieval accuracy by adding layers of filterable information. For every chunk, you can:

• Generate a concise summary.
• Extract relevant keywords or entities.
• Apply custom tags (e.g., {"department": "finance", "year": 2023}).

This metadata acts as a set of powerful labels for your vector database, enabling your RAG system to perform highly specific, filtered queries. It’s the final polish that transforms a simple pdf to markdown conversion into a high-performance, enterprise-grade knowledge asset.

Optimizing Chunks And Metadata For Superior Retrieval

<iframe width="100%" style="aspect-ratio: 16 / 9;" src="https://www.youtube.com/embed/8OJC21T2SL4" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>

Getting your PDF into clean, well-structured chunks is a huge step, but the real performance gains come from optimization. This is where you move beyond simple conversion and start engineering chunks for high-fidelity retrieval. It’s the difference between a RAG system that works and one that delivers consistently accurate, reliable results.

Excellent retrieval is not an accident. It is the direct result of thoughtful optimization, with the two most powerful levers being chunking parameters and metadata enrichment.

Fine-Tuning Chunk Size And Overlap

There is no universal "perfect" chunk size. The optimal size depends on your LLM's context window and the nature of your documents. A dense academic paper may require smaller, more focused chunks to maintain detail, while a broader company memo might benefit from larger chunks to preserve narrative flow.

In a tool like ChunkForge, you can precisely control the chunk size and overlap. A small overlap of 50-100 tokens is crucial, as it prevents a key idea from being split across two chunks, thereby preserving the semantic link between them. Experimentation is key to finding the sweet spot that maximizes context without overwhelming your model.

The objective is to ensure every chunk is a self-contained, meaningful unit of information. This gives your retrieval system the best possible chance of finding a chunk that perfectly matches the user's query.

The success of this step is directly tied to the quality of your initial conversion. The pdf to markdown process is the bedrock of modern RAG pipelines. Recent research highlights that modern transformer models can achieve incredible fidelity in preserving document structure. For any serious knowledge base, a high-quality PDF-to-Markdown conversion is essential. You can explore these advancements in document understanding models to see how far the technology has progressed.

The Power Of Deep Metadata Enrichment

While semantic chunking provides contextual relevance, rich metadata is what enables truly intelligent, precise retrieval. By using custom JSON schemas, you can attach structured, typed metadata to every chunk, effectively turning your knowledge base into a highly filterable database.

This is a game-changer for enterprise use cases.

Imagine searching for financial data, but only from Q4 2023 reports filed by your European division. A simple text search would return a flood of irrelevant results. With structured metadata, the query becomes trivial.

You could structure your metadata like this:

• Document Source: quarterly_report_Q4_2023_EU.pdf
• Report Quarter: Q4
• Fiscal Year: 2023
• Region: EU
• Content Type: Financial Table

By embedding this JSON into each chunk's metadata, you enable your RAG system to perform a pre-retrieval filter. It first instantly narrows the search space to only chunks matching { "Region": "EU", "Report Quarter": "Q4" } and then performs the semantic search on that much smaller, highly relevant pool of data.

This approach drastically reduces noise, prevents the model from retrieving irrelevant information from other reports, and massively boosts the accuracy and relevance of the final answer.

Common Questions About PDF to Markdown for RAG

When preparing documents for a RAG pipeline, the details matter. The initial PDF to Markdown conversion is just the first step. The real challenge—and opportunity for improvement—lies in handling the complexities that make or break your retrieval quality.

Here are some of the most common hurdles developers face.

How Should I Handle Tables During the Conversion?

Tables are a notorious pain point for data extraction.

For clean, digitally-native PDFs, tools like Pandoc or Marker can often generate usable Markdown table syntax, though some manual cleanup is usually required.

For scanned PDFs or documents with complex visual layouts, a layout-aware converter is non-negotiable. These tools are far more effective at identifying and preserving the structure of tabular data, which is critical for accurate retrieval.

Actionable Insight: For critical data in complex tables, a better approach is to extract the table into a separate CSV file. You can then reference this CSV in the chunk's metadata. This keeps the data structured and makes it far easier for the RAG system to query accurately, separating the structured data from the surrounding narrative text.

What's the Best Chunking Strategy for Technical Documents?

There is no single "best" strategy; the optimal choice depends entirely on the document's structure. A one-size-fits-all approach will lead to poor retrieval.

Here’s a practical framework:

• Heading-Based Chunking: This is the default choice for well-organized technical manuals, API documentation, or research papers. If the document has a clear hierarchy (## Section 2.1, ### Subsection 2.1.1), this strategy ensures that conceptually related paragraphs and code snippets are grouped under their parent heading, creating contextually rich chunks.

• Semantic Chunking: For more narrative content, such as technical whitepapers or articles without a rigid heading structure, semantic chunking is superior. It groups text based on conceptual similarity, ensuring each chunk is thematically coherent and optimized for vector search.

Always experiment and visually verify your results. Use a tool with a preview function to see how different strategies split your content before committing to an expensive embedding pipeline.

Can I Actually Process Scanned PDFs Without Losing Information?

Yes, but your success depends 100% on the quality of your Optical Character Recognition (OCR) engine. Modern open-source tools often integrate powerful OCR models that can extract text from images with high fidelity.

However, even the best OCR is not perfect. The quality of the original scan—including resolution, shadows, and skew—plays a significant role.

For any mission-critical RAG application, you must implement a review step in your workflow. After OCR processing, run a post-processing pass to correct obvious errors. This final quality check is essential to prevent garbled, nonsensical text from corrupting your vector database and compromising retrieval accuracy.

---
